In the high-stakes world of industrial manufacturing and construction, the “wrong material” nightmare is a reality that can lead to catastrophic structural failure, massive financial liabilities, and damaged reputations. Whether it is a batch of bolts or massive structural beams, verifying the chemical composition at the point of receipt is no longer optional. This is where PMI Testing for Steel becomes the frontline defense for quality assurance.
Positive Material Identification (PMI) is a non-destructive method used to verify that the supplied metal matches the specific alloy requirements of a project. For stakeholders in warehousing and logistics, implementing a robust protocol for PMI Testing for Steel ensures that every item moving through the supply chain is exactly what the Mill Test Certificate (MTC) claims it to be.
Table of Contents
The Technology Behind the Precision: XRF Analyzer Metal

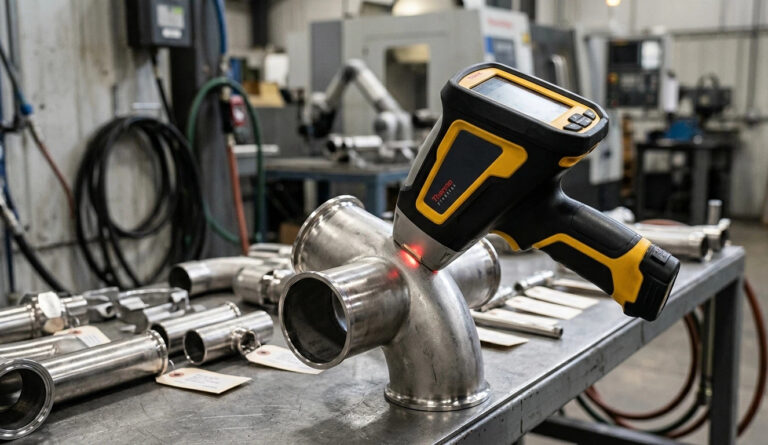

The modern industry has moved away from slow, destructive laboratory sampling in favor of instantaneous, on-site results. The most prevalent tool used today is the handheld XRF analyzer metal device.
X-Ray Fluorescence (XRF) works by emitting X-rays into the steel sample, which displaces electrons in the atoms’ inner shells. As the atoms stabilize, they emit characteristic energy “fluorescence” that the device reads to determine the exact elemental concentration. Using an XRF analyzer metal allows a warehouse inspector to get a full chemical breakdown of a steel bar in under five seconds.
When performing PMI Testing for Steel, the XRF device can identify critical alloying elements like Chromium, Nickel, Molybdenum, and Manganese with laboratory-grade precision, all while the material remains on the delivery truck or the warehouse rack.
Solving the Most Common Confusion: 304 vs 316 Stainless Test
In the stainless steel sector, the most frequent—and dangerous—mix-up occurs between Grade 304 and Grade 316. Visually, these two alloys are identical. However, Grade 316 contains 2-3% Molybdenum, providing essential corrosion resistance for marine or chemical environments that Grade 304 lacks.
A dedicated 304 vs 316 stainless test is the primary request for on-site inspection teams. Without PMI Testing for Steel, a project might inadvertently use 304 stainless in a highly corrosive environment, leading to premature pitting and failure. By utilizing the “Pass/Fail” mode on a modern analyzer, operators can conduct a 304 vs 316 stainless test across hundreds of components in a single shift, ensuring that the molybdenum-rich 316 stays where it belongs.
To better visualize this inspection process, watch the video below to see how technicians use a handheld XRF analyzer for on-site calibration and precise testing of 316 stainless steel.
Implementing Material Mix-up Prevention in Logistics
Material mix-ups often happen at the points of transition: during unloading, in bulk storage, or during secondary processing like cutting. A strategic material mix-up prevention program is built on three pillars:
1.Incoming Inspection: Mandating PMI Testing for Steel for 10% to 100% of every incoming batch, depending on the criticality of the application.
2.Color Coding & Tagging: Physical marking must follow the electronic verification immediately.
3.Digital Traceability: Linking PMI scan results directly to the warehouse management system (WMS).
Effective material mix-up prevention reduces the “Cost of Quality” by catching errors at the gate before they are integrated into expensive assemblies or shipped to the end customer.
International Standards for Material Verification
Compliance is the backbone of industrial trust. Professional PMI Testing for Steel protocols are guided by international standards that dictate how and when materials must be verified.
- API RP 578: This is the industry-standard “Material Verification Program for New and Existing Alloy Piping Systems.” It provides the framework for ensuring that the correct alloy is used in high-pressure oil and gas environments. You can view the guidelines at API.org.
- ASTM E1476: This is the “Standard Guide for Metals Identification, Grade Verification, and Sorting,” which covers the various methodologies, including XRF and LIBS. Detailed standard information is available via ASTM International.
Following these standards ensures that your PMI Testing for Steel results are legally and technically defensible in the event of a dispute or audit.
Why B2B Procurement Leaders Prioritize On-site PMI
For procurement officers, the value of PMI Testing for Steel extends beyond safety; it is a financial safeguard.
1.Eliminating Rejection Costs: Returning a 20-ton shipment after it has been unloaded and stored is a logistical nightmare. PMI identifies the error while the driver is still on-site.
2.Insurance Compliance: Many high-risk infrastructure projects require documented PMI results to satisfy insurance underwriters.
3.Supplier Accountability: Regular PMI Testing for Steel (9) sends a clear message to suppliers that only 100% compliant materials will be accepted, leading to better overall batch quality.
Handheld LIBS vs. XRF: Which Tool for Your Steel?
While XRF analyzer metal technology is the gold standard for most alloys, Laser-Induced Breakdown Spectroscopy (LIBS) is gaining ground, especially for carbon steel analysis. LIBS is capable of detecting light elements like Carbon (C), which XRF cannot.
If your PMI Testing for Steel requirement involves distinguishing between Low Carbon (L-grade) and standard stainless steels, or identifying specific carbon levels in structural steel, a LIBS device may be necessary. However, for 90% of warehouse sorting tasks involving stainless and high-alloy steels, XRF remains the faster and more user-friendly choice.
FAQ
Does PMI Testing for Steel damage the surface of the metal?
If using XRF, the test is completely non-destructive. If using LIBS or Spark-OES, a tiny, microscopic burn mark (the size of a pinhead) is left on the surface, which is usually acceptable even for finished parts.
How long does a typical on-site test take?
A modern XRF analyzer metal scan takes between 2 to 5 seconds per spot. A full pallet of material can often be verified in under 5 minutes.
Can PMI detect the difference between 304 and 304L?
Standard XRF cannot detect Carbon, so it cannot distinguish between 304 and the low-carbon 304L. For this specific 304 vs 316 stainless test variation involving “L” grades, a LIBS analyzer is required.
Is operator certification required for PMI?
While not always legally mandated for warehouse sorting, many high-spec industries (like Nuclear or Aerospace) require operators to be certified to Level II according to SNT-TC-1A or equivalent standards.
